gofanco 8x8 HDMI Matrix Switch – Up to 1080p , 3D, HDMI 1.3a, HDCP 1.4, Smart EDID - Control Options; Buttons, IR, GUI, RS232 - 8 in 8 Out Video Switcher and Splitter - Firmware Upgradable (Matrix88)

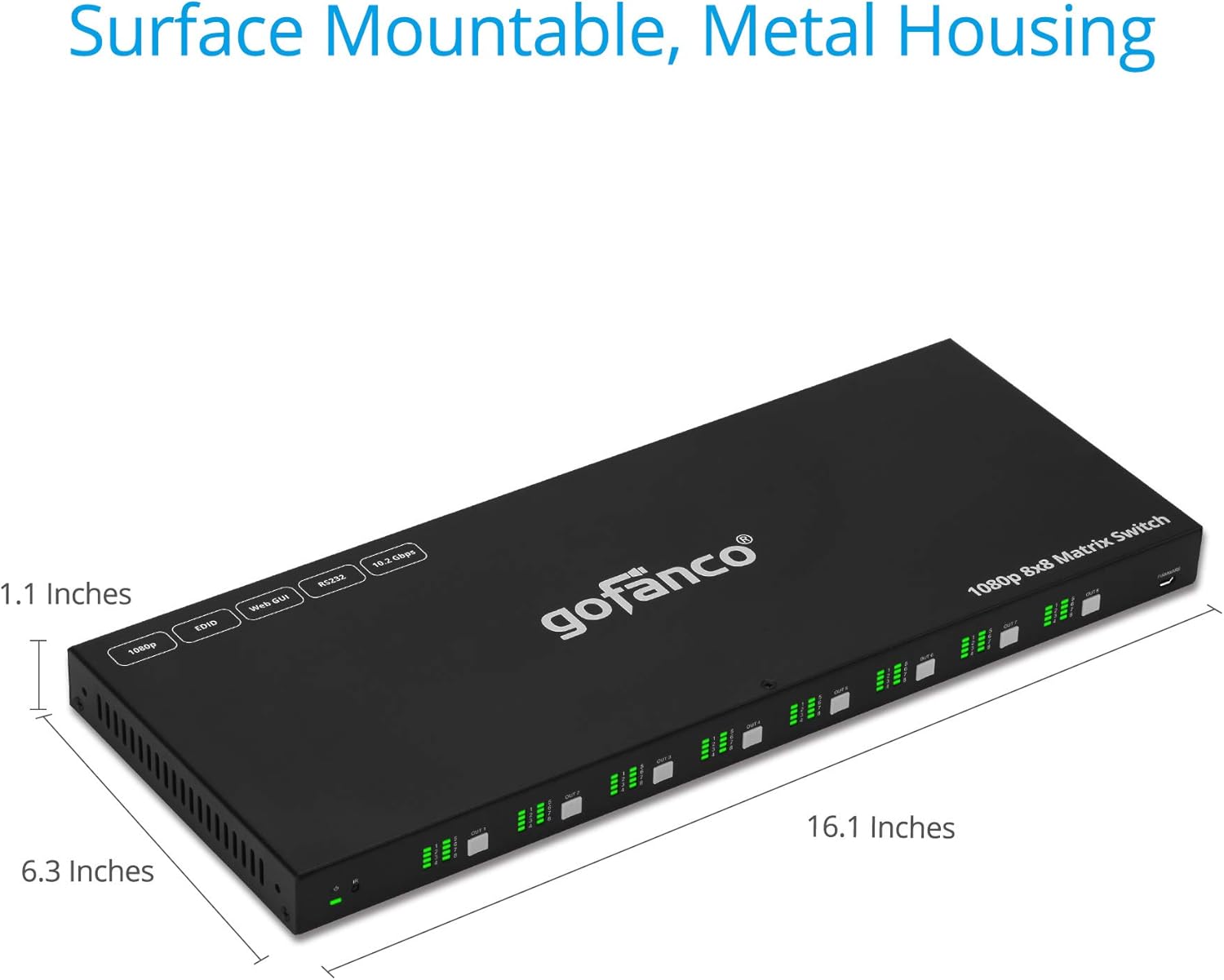

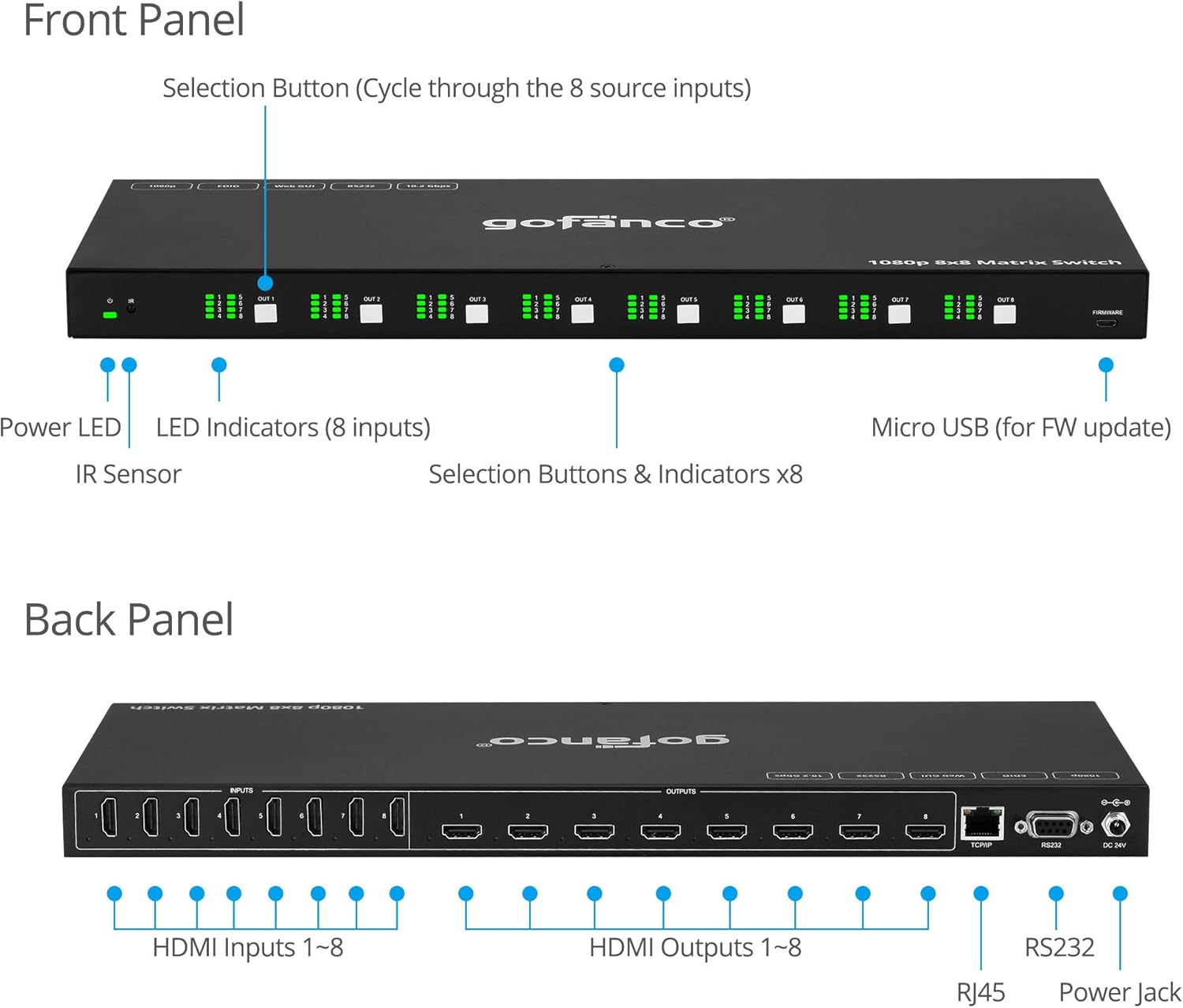

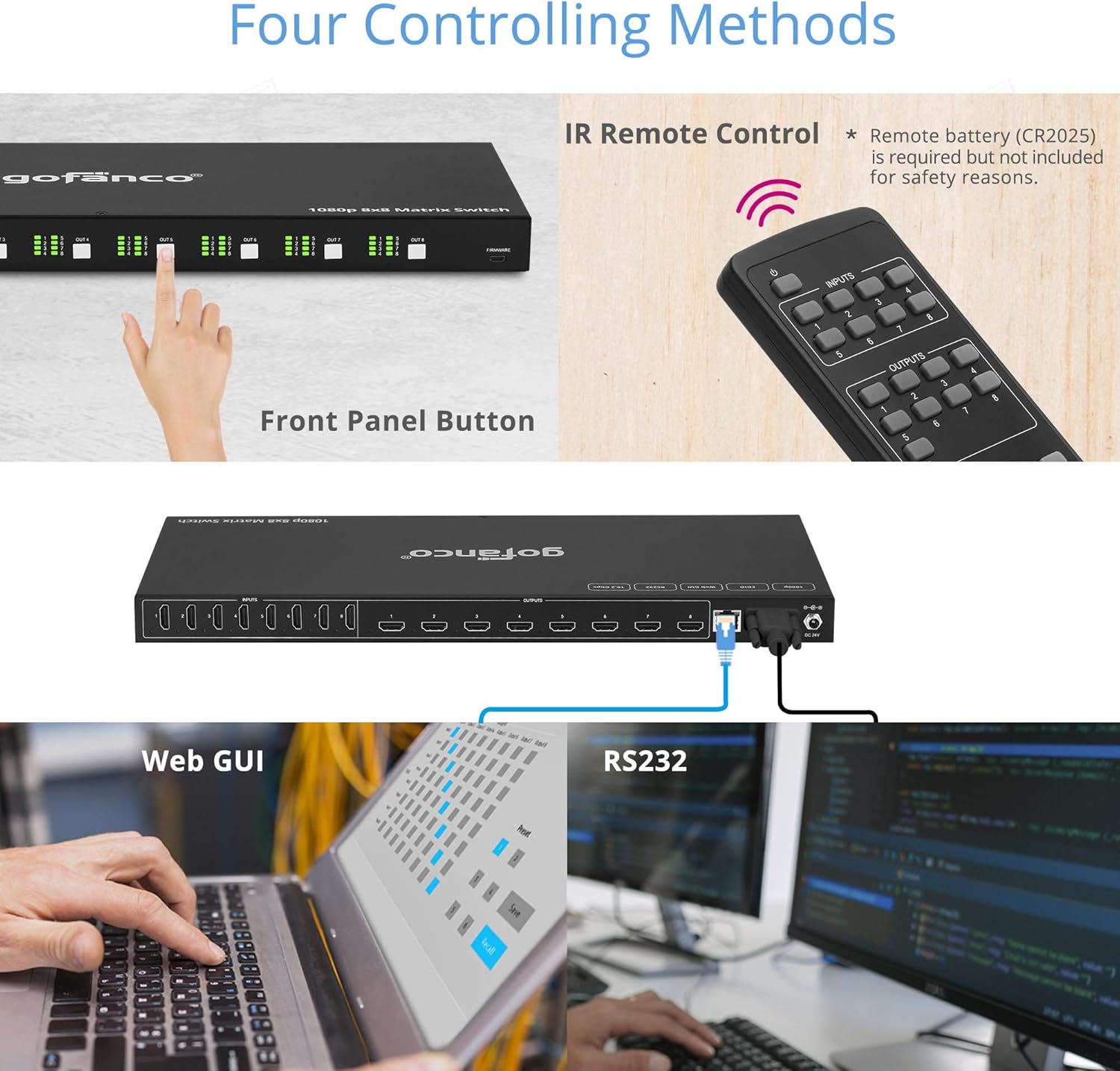

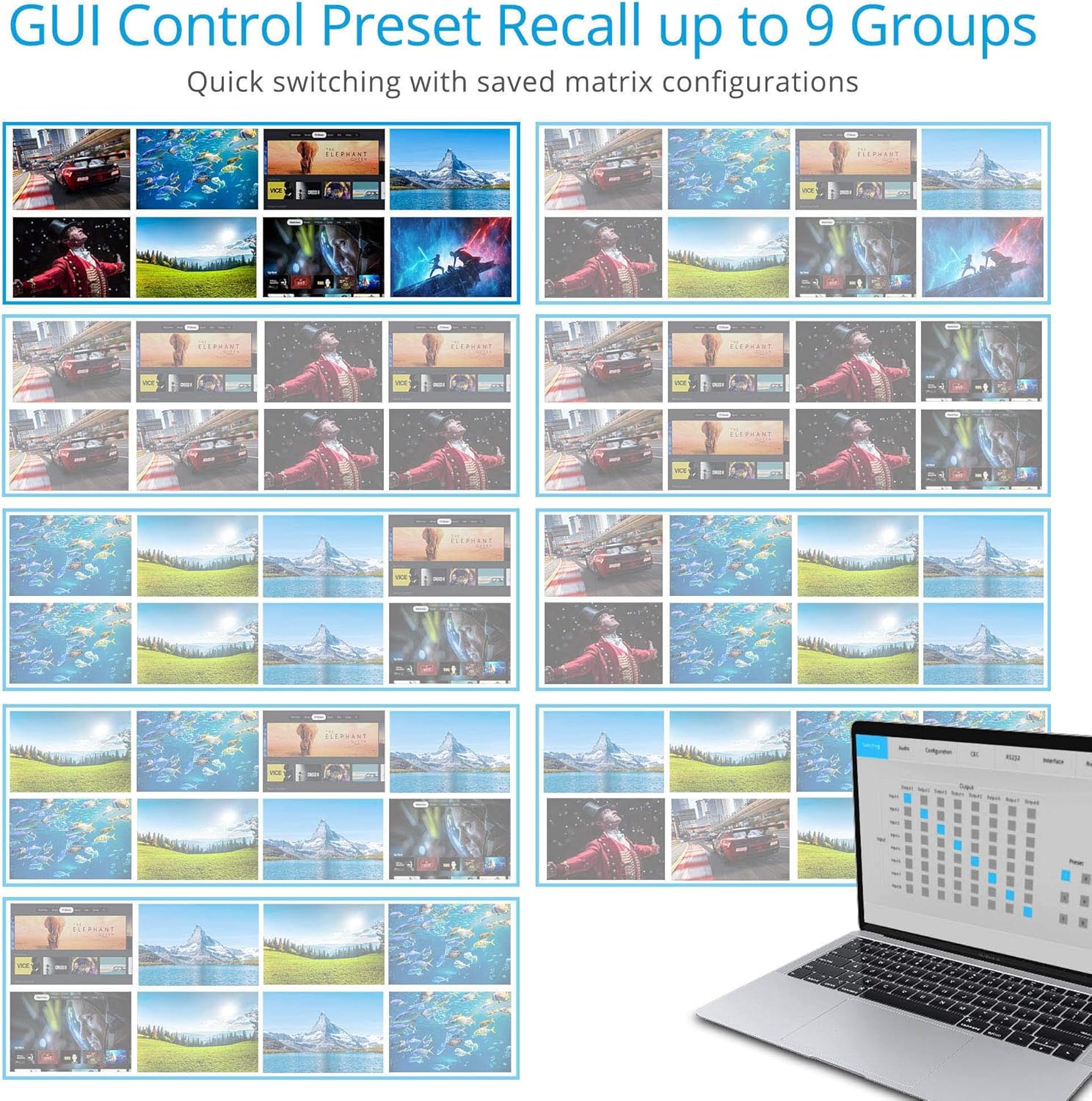

✔ 8x8 HDMI MATRIX – Connect up to eight HDMI source devices and independently distribute any source to any of the eight HDMI displays. GREAT HDMI DISTRIBUTION PRODUCT for you 1080p DVD/Blu-Ray players, cable/satellite boxes, laptop computers, gaming consoles & streaming devices✔ 1080p DISPLAY RESOLUTION & DIGITAL AUDIO – Up to 1080p @60Hz YUV 4:4:4 8bit; supports audio formats: LPCM 2ch, Dolby Digital 2/5.1ch and DTS 2/5.1ch; HDMI 1.3a, HDCP 1.4 compliant✔ ADVANCED HDMI MATRIX SWITCH FEATURES – Smart EDID management to match the connected displays to media devices for high quality video, quick switching with saved configurations via GUI, and firmware upgradable to expand compatibility✔ FOUR SWITCHING METHODS – 1) Front panel buttons, 2) IR remote control, 3) RS-232, and 4) GUI control. *Note: A remote battery (CR2025, 3V) is required but not included for safety reasons✔ SIMPLE INSTALLATION – No driver required; Surface-mountable metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select "Ask a Question"

	Matrix44v2	PRO-Matrix44-SC	Matrix42-HD20	Matrix44-HD20	PRO-Matrix88-aud	Matrix88
Input x Output	4x4	4x4	4x2	4x4	8x8	8x8
Max Resolution	4K @30Hz	4K @60Hz 4:4:4	4K @60Hz 4:4:4	4K @60Hz 4:4:4	4K @60Hz 4:4:4	1080p @60Hz
HDMI/HDCP	HDMI 1.4 / HDCP 2.2	HDMI 2.0 / HDCP 2.2	HDMI 2.0 / HDCP 2.2	HDMI 2.0 / HDCP 2.2	HDMI 2.0 / HDCP 2.2	HDMI 1.3 / HDCP 1.4
Extender	No	No	No	No	No	No
Mixed Resolution Output	None	4K & 1080p	4K & 1080p	None	None	None
Switch Methods	Front Panel Buttons / IR Remote / RS-232 Control	Alexa Echo Voice / Front Panel Buttons / IR Remote / RS-232 / GUI IP Control / Control4*	Front Panel Buttons / IR Remote / RS-232 / GUI IP Control	Front Panel Buttons / IR Remote / RS-232 / GUI IP Control	Alexa Echo Voice / Front Panel Buttons / IR Remote / RS-232 / GUI IP Control / Control4*	Front Panel Buttons / IR Remote / RS-232 Control / Web GUI
Bandwidth	10.2 Gbps	18 Gbps	18 Gbps	18 Gbps	18 Gbps	10.2 Gbps
HDR	No	Yes	Yes	Yes	Yes	No
RS-232 Control	Yes	Yes	Yes	Yes	Yes	Yes
EDID	Yes	Yes	Yes	Yes	Yes	Yes
